| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 15.6 mm x 48.5 mm x 42 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 20 mm … 350 mm 1) |
| Sensing range | 20 mm … 350 mm |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 6 mm (200 mm) |
| Wave length | 640 nm |
| Adjustment | Potentiometer, 5 turns |
|
|
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | ≤ 5 Vpp 2) |
| Power consumption | 45 mA 3) |
| Switching output | PNP |
| Output function | Complementary |
| Switching mode | Light/dark switching |
| Signal voltage PNP HIGH/LOW | > Uv – 2,5 V / ca. 0 V |
| Output current Imax. | 100 mA |
| Response time | ≤ 330 µs 4) |
| Switching frequency | 1,500 Hz 5) |

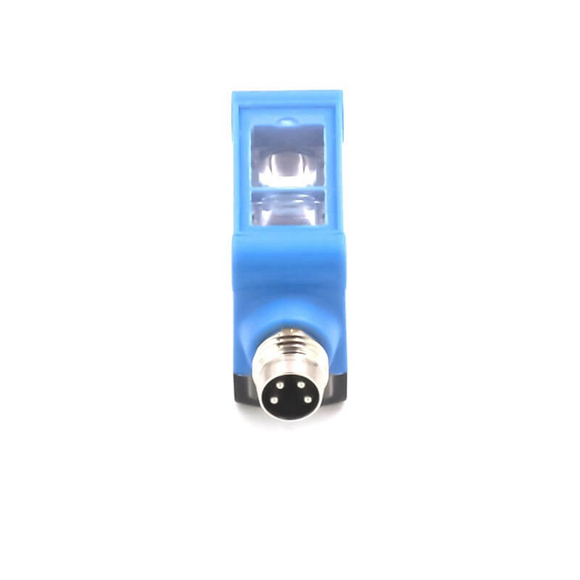

| Connection type | Male connector M12, 4-pin |
| Circuit protection | A 6) |
| C 7) |
| D 8) |
| Protection class | III |
| Weight | 120 g |
| Housing material | Metal |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66 |
| IP67 |
| IP69K |
| Items supplied | 2 x clamps BEF-KH-W12, incl. screws |
| Ambient operating temperature | –40 °C … +60 °C |
| Ambient storage temperature | –40 °C … +75 °C |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
