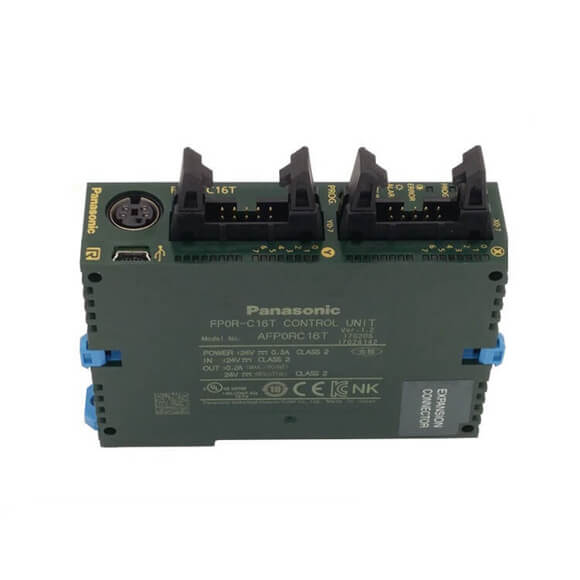

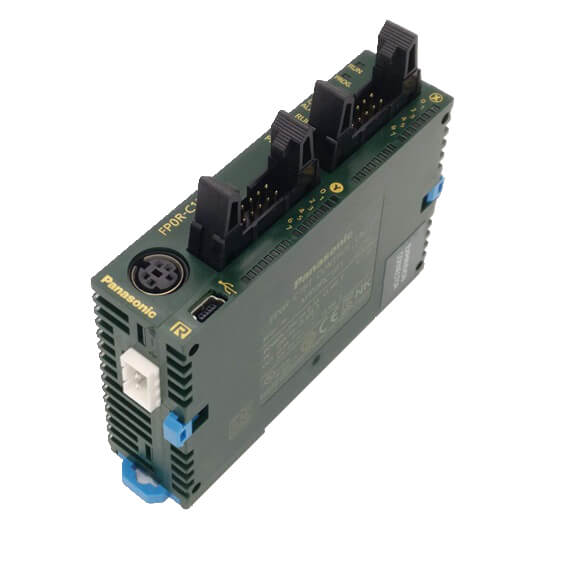

| Product type of FP0R control unit | C10 | C14 | C16 | C32 | T32 | F32 |
| (Relay output type only) | (Relay output type only) | (Transistor output type only) | (Transistor output type only) | (Transistor output type only) | (Transistor output type only) |
| Programming method / Control method | Relay symbol / Cyclic operation |
| 10 points | 14 points | 16 points | 32 points | 32 points |
| [Input: 6, Relay | [Input: 8, Relay | [Input: 8, Transistor | [Input: 16, Transistor | [Input: 16, Transistor Output: 16] |
| Control unit only (No expansion) | Output: 4] | Output: 6] | Output: 8] | Output: 16] |
|
| Max. 58 points | Max. 62 points | Max. 112 points | Max. 128 points | Max. 128 points |
| With expansion 1 |
| Same type of control and expansion units (Note) |
| Max. 106 points | Max. 110 points | Max. 112 points | Max. 128 points | Max. 128 points |
| With expansion 2 |
| Mix type of relay and transistor units (Note) |
| Program memory | EEPROM (no backup battery required) |
| Program capacity | 16 k steps | 32 k steps |
| Number of instructions | 110 types approx. |
| Basic instructions |
| 210 types approx. |
| High-level instructions |
| Operation speed | Basic instructions: 0.08 µs min. Timer instructions: 2.2 µs min. High-level instructions: 0.32 µs (MV instruction) min. |
| Up to 3,000 steps |
| Basic instructions: 0.58 µs min. Timer instructions: 3.66 µs min. High-level instructions: 1.62 µs (MV instruction) min. |
| 3,001st. and later steps |
| 4,096 points |
| Operation memory |
| Relay |
| Internal relay (R) |
| Timer / Counter (T/C) | 1,024 points |
| Memory area | 12,315 words | 32,765 words |
| Data register (DT) |
| 14 words (IO to ID) |
|
| Index register (IX, IY) |
| Master control relay points (MCR) | 256 words |
| Number of labels (JMP and LOOP) | 256 labels |
| Differential points | Equivalent to the program capacity |
| Number of step ladder | 1,000 stages |
| Number of subroutines | 500 subroutines |
| Special functions | Single-phase: 6 points (50 kHz max. each) 2-phase: 3 channels (15 kHz max. each) (Note) |
| High speed counter |
| Not available | 4 points (50 kHz max. each) 2 channels can be controlled individually. (Note) |
| Pulse output |
| Not available | 4 points (6 Hz to 4.8 kHz) |
| PWM output |
| Total 8 points (with high speed counter) |
| Pulse catch input / interrupt input |
| Input: 8 programs (6 programs for C10 only) / Periodic: 1 program / Pulse match: 4 programs |
| Interrupt program |
| In units of 0.5 ms: 0.5 ms to 1.5 sec. / In units of 10 ms: 10 ms to 30 sec. |
| Periodical interrupt |
| In units of 0.5 ms: 0.5 ms to 600 ms |
| Constant scan |
| One RS-232C port is mounted on each of C10CRS, C10CRM, C14CRS, C14CRM, C16CT, C16CP, C32CT, |
| C32CP, T32CT, T32CP, F32CT and F32CP type (3P terminal block) Transmission speed (Baud rate): 2,400 to 115,200 bits/sec., Transmission distance: 15 m 9.843 ft. Communication method: half duplex |
| RS-232C port |
|
| Stored fixed area in EEPROM | Backup of the entire area by FeRAM (without the need for a battery) |
| Operation memory |
| Counter: 16 points Internal relay: 128 points | Backup of the entire |
|
| Data register: 315 words | area by a built-in secondary battery |
|
|
| Watchdog timer (690 ms approx.), program syntax check |
| Self-diagnostic function |
| Real-time clock function | Not available | Available | Not available |
| Rewriting in RUN mode, download in RUN mode (incl. comments) 8-character password setting, and program upload protection |
| Other functions |
