| Mitsubishi Touch screen HMIs | Screen Size | Resolution | Display Type | Frame Color | Power Supply | Stocked Item |
| GT2103-PMBD | 3.8″ | 320 x 128 dots | TFT monochrome LCD | Black | 24VDC | S |
| GT2103-PMBDS | S |
| GT2103-PMBDS2 | S |
| GT2103-PMBLS | 5VDC | S |
| GT2104-RTBD | 4.3″ | 480 x 272 dots | TFT color LCD | 24VDC | S |
| GT2105-QTBDS | 5.7″ | 320 x 240 dots | TFT color LCD | S |
| GT2105-QMBDS | TFT monochrome LCD | S |

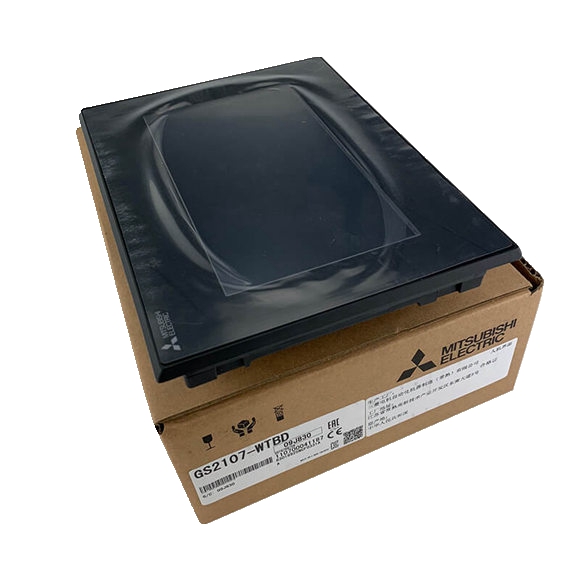

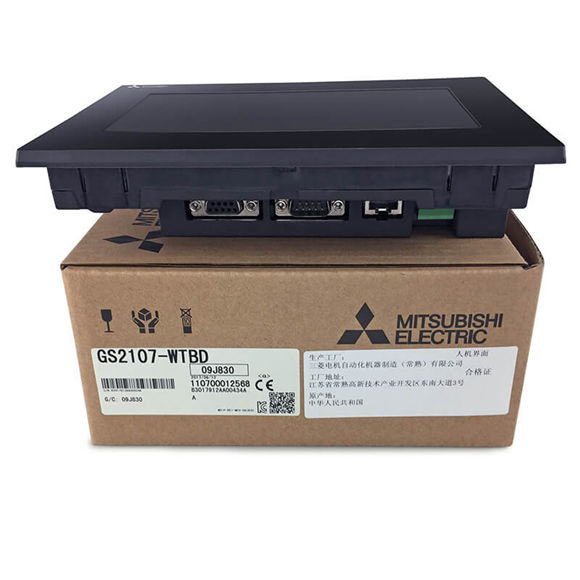

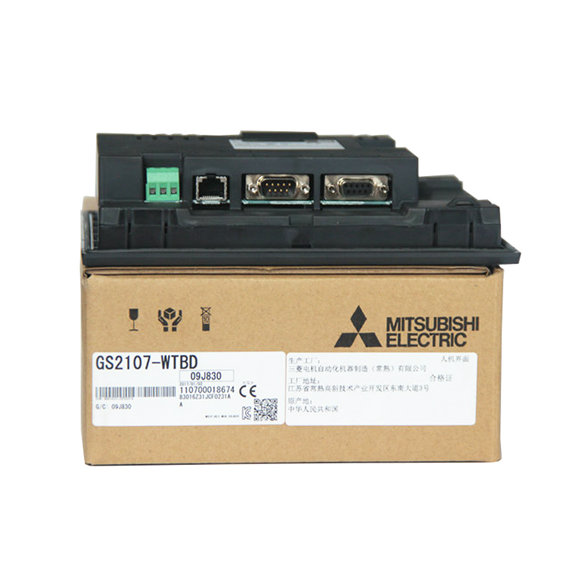

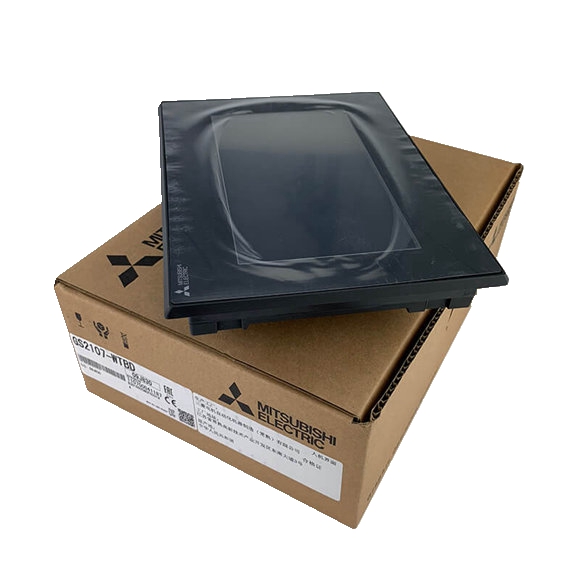

| GT2107-WTBD | 7.0″ | 800 x 480 dots | TFT color LCD display | 24VDC | S |
| GT2107-WTSD | Silver | S |
| 3.8″ Mitsubishi Touch screen HMIs | GT2103-PMBD | GT2103-PMBDS | GT2103-PMBDS2 | GT2103-PMBLS |
| Input Power Supply Voltage | 24VDC (+10%, -15%) | 5 VDC (±5%), supplied from PLC |
| Input Power Supply Frequency | – |
| Maximum Load | 2.6W or less | 1.9W or less | 2.2W or less | 1.1W or less |
| Stand Alone with Backlight Off | 2.0W | 1.3W | 1.6W | 0.7W |
| Inrush Current | 30A or less (1ms, ambient temperature 25°C, maximum load) | – |
| Permissible Instantaneous Failure Time | Within 5ms | – |
| Noise Resistance | Noise voltage 1000Vp-p, noise width 1μs by noise simulator with noise frequency 30 to 100Hz |
| Withstand Voltage | 500VAC for 1 minute between power supply terminal and ground | – |
| Insulation Resistance | 500VDC across power supply terminals and earth, 10MΩ or more by an insulation resistance tester | – |
| Model Number | GT2104-RTBD | GT2105-QTBDS | GT2105-QMBDS | GT2107-WTBD | GT2107-WTSD |
| Input Power Supply Voltage | 24VDC (+10%, -15%) |
| Input Power Supply Frequency | – |
| Power ConsumptionMaximum Load | 4.4W or less | 4.5W or less | 2.9W or less | 11.3W or less |
| Stand Alone with Backlight Off | 2.9W | 2.2W or less | 7.0W |
| Inrush Current | 18 A or less (2 ms, 25°C, at the maximum load) | 27A or less (2ms, 25°C, at the maximum load) | 35 A or less (3 ms, ambient temperature: 25°C, under the maximum load) |
| Permissible Instantaneous Failure Time | Within 5ms |
| Noise Resistance | Noise voltage 1000Vp-p, noise width 1μs by noise simulator with noise frequency 30 to 100Hz |
| Withstand Voltage | 500VAC for 1 minute between power supply terminal and ground |
| Insulation Resistance | 500VDC across power supply terminals and earth, 10MΩ or more by an insulation resistance tester | 10MΩ or more by insulation resistance tester | 500VDC across power supply terminals and earth, 10MΩ or more by an insulation resistance tester |
