| Item | Specifications |

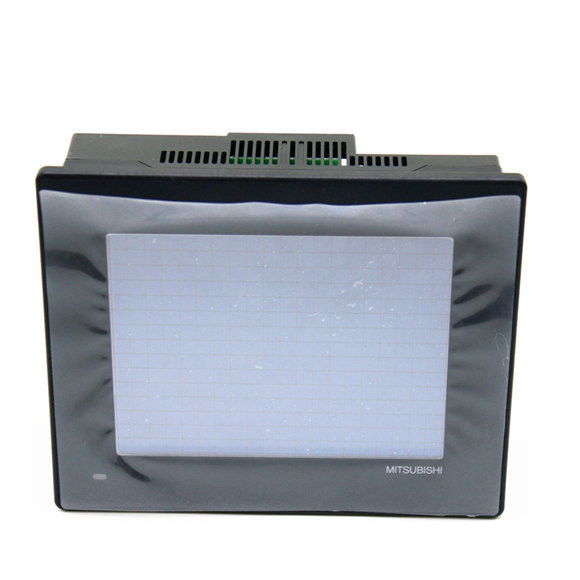

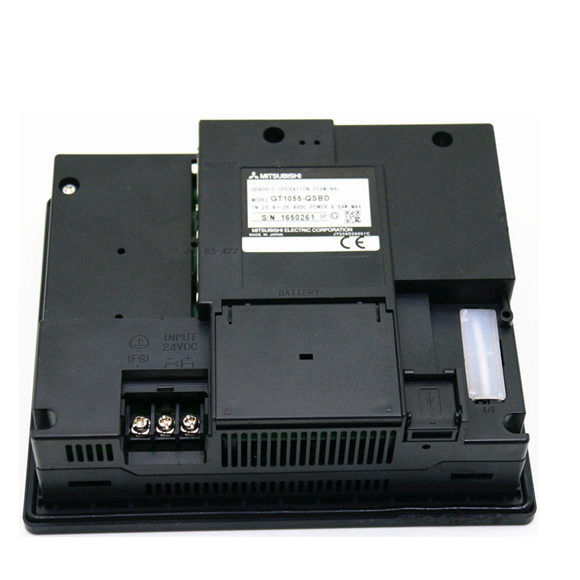

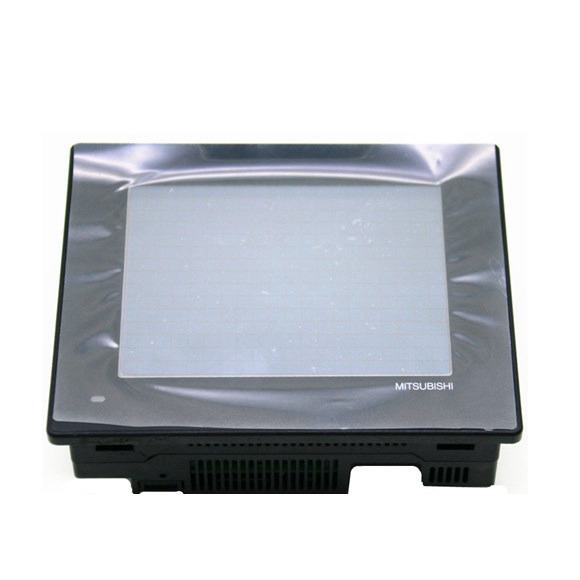

| Mitsubishi HMI Touch screen | GT1055-QSBD | GT1050-QBBD |
| Display section*1 | STN color liquid crystal | STN monochrome (white/blue) liquid crystal |
| Type |
| Screen size | 5.7″ |
| Resolution | 320 240 dots (Horizontal format) |
| Display size | W115(4.53) H86(3.39) [mm](inch) (Horizontal format) |
| Display character | 16-dot standard font: 40 characters 15 lines (Horizontal format) 12-dot standard font: 53 characters 20 lines (Horizontal format) |
| Display color | 256 colors | Monochrome (white/blue), 16 scales |
| Left/Right: 55 degrees, Top: 65 degrees, Bottom: 70 degrees (Horizontal format) (Hardware version K or earlier) |
|
| Display angle |
|
|
| Left/Right: 50 degrees, Top: 50 degrees, Bottom: 70 degrees (Horizontal format) (Hardware version L or later) | Left/Right: 45 degrees, Top: 20 degrees, Bottom: 40 degrees (Horizontal format) |
| 16-level adjustment |
| Contrast adjustment |
| Intensity of LCD only | 380 [cd/m2] | 260 [cd/m2] |
| Life | Approx. 50,000h. (Time for display intensity to become 1/5 at operating ambient temperature of 25) |
| Backlight | Cold cathode fluorescent tube (irreplaceable by a user) backlight shutoff detection function is included. Backlight off/screen saving time can be set. |
| Approx. 75,000h or longer (Time for display intensity reaches 50% at the operating ambient temperature of 25 ) | Approx. 54,000h or longer (Time for display intensity reaches 50% at the operating ambient temperature of 25 ) |
| Life*2 |
| Touch panel | Maximum 50 keys/screen (Matrix resistive film touch panel) |
| Number of touch keys |
| Key size | Minimum 16 | 16 dots (per key) |
|
| Maximum of 2 points |
| Number of points touched simultaneously |
| Life | 1 million times or more (operating force 0.98N max.) |
| Memory | Flash memory (Internal), for storing project data (3Mbytes or less), OS |
| C drive*3 |
| Life (Number of write times) | 100,000 times |
| SRAM (Internal), for storing alarm history, recipe data and time action setting value |
| D drive |
| Battery | GT11-50BAT lithium battery |
| Clock data, alarm history, recipe data and time action setting value |
| Backup target |
| Life | Approx. 5 years (Operating ambient temperature of 25) |
| Built-in interface | • RS-422 1ch |
| Transmission speed :115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape :D-sub 9 pins (Female) |
| Application :PLC communication (Hardware version A to B) |
| • RS-422/485 1ch |
| Transmission speed :115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape :D-sub 9 pins (Female) |
| RS-422 | Application :PLC communication |
| Terminating resistor*4 :Open/110 /330 (Switched by terminating resistor selector switch) (At factory shipment: 330) |
| (Hardware version C or later) |
| RS-232 | RS-232 1ch |
| Transmission speed :115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape :D-sub 9 pins (Male) |
| Application :PLC communication, bar code reader connection, PC |
| communication (Project data upload/download, OS installation, transparent function) |
| USB | USB (Full Speed 12Mbps) 1ch Connector shape :Mini-B |
| Application :PC communication (Project data upload/download, OS installation, transparent function) |
| Memory board | For connecting memory board (GT10-50FMB), 1ch |
| Buzzer output (a buzzer that sounds when touch keys are pressed) | Single tone (LONG/SHORT/OFF adjustable) |
| Environmental protective structure*5 | Equivalent to IP67 (JEM1030) (front section) (Horizontal format) |
| External dimensions | W164(6.46) H135(5.32) D56(2.21) (Excluding mounting fixtures) [mm](inch) (Horizontal format) |
