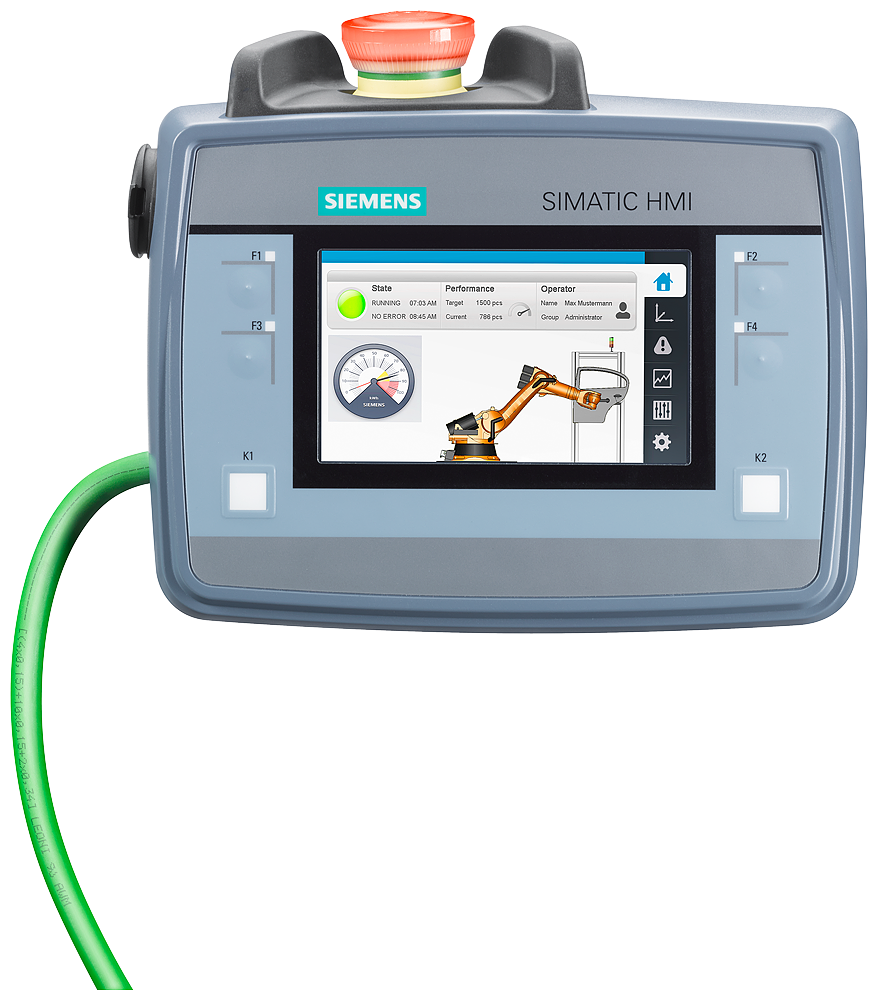

| information | SIMATIC HMI KTP400F Mobile Panel Touch Screen 6AV2125-2DB23-0AX0 |
| Product type designation | KTP400F Mobile |
| Design of display | TFT |
| Screen diagonal | 4.3 in |
| Color display | Yes |
| Number of colors | 16 777 216 |
| ● Horizontal image resolution | 480 Pixel |
| ● Vertical image resolution | 272 Pixel |
| ● MTBF backlighting (at 25 °C) | 50 000 h |
| ● Backlight dimmable | Yes; 0-100 % |
| ● Function keys |
|
| — Number of function keys | 4 |
| — Number of function keys with LEDs | 4 |
| ● Keys with LED | Yes Yes; |
|
|
| ● Numeric keyboard | Yes; | Onscreen Onscreen | keyboard keyboard |
| ● alphanumeric keyboard |
|
|
|
| ● Design as touch screen | Yes |
| ● Design as multi-touch screen | No |
| ● Stop button (forced blocking) | Yes |
| ● Emergency stop button (illuminated and forced blocking) | Yes |
| ● Acknowledgement button (3-stage) | Yes |
| ● Key-operated switch | No |
| ● Illuminated pushbutton | Yes |
| ● integrated camera | No |
| ● DP direct LEDs (LEDs as S7 output I/O) |
|
| — F1…Fx | 4 |
| ● Direct keys (keys as S7 input I/O) |
|
| — F1…Fx | 4 |
| ● Direct keys (touch buttons as S7 input I/O) | 32 |
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Current consumption (rated value) | 210 mA |
| Starting current inrush I²t | 0.37 A²·s |
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 4 Mbyte |
