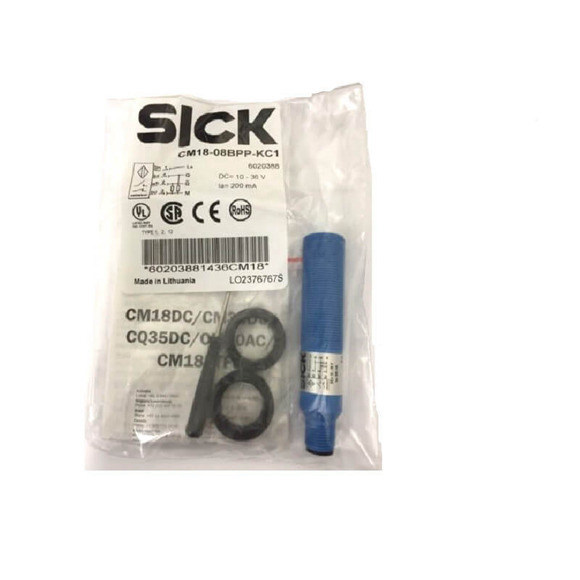

| Housing | Cylindrical thread design |
| Thread size | M18 x 1 |
| Diameter | Ø 18 mm |
| Sensing range Sn | 3 mm … 8 mm |
| Safe sensing range Sa | 5.76 mm |
| Installation type | Flush |
| Switching frequency | 30 Hz |
| Connection type | Cable, 4-wire, 2 m 1) |
| Switching output | PNP |
| Output function | Complementary |
| Electrical wiring | DC 4-wire |
| Adjustment | Potentiometer, 270° (Sensitivity) |
| Enclosure rating | IP67 2) |
|
|
| Supply voltage | 10 V DC … 36 V DC |
| Ripple | ≤ 10 % 1) |
| Voltage drop | ≤ 2.5 V DC 2) |
| Current consumption | 10 mA 3) |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 4 % … 20 % |
| Reproducibility | ≤ 5 % 4) 5) |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 6) |
| Continuous current Ia | ≤ 200 mA |
| Cable material | PVC |
| Conductor size | 0.34 mm² |
| Short-circuit protection | ✔ |
| Reverse polarity protection | ✔ |
| Power-up pulse protection | ✔ |
| Shock and vibration resistance | 30 g, 11 ms / 10 … 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C … +60 °C |
| Housing material | PTFE coating, PTFE |
| Housing length | 71.5 mm |
| Thread length | 46.5 mm |
| Tightening torque, max. | ≤ 2.6 Nm |
| Items supplied | Mounting nut, PTFE plastic (2x) |
| Screwdriver for potentiometer adjustment (1 x) |
