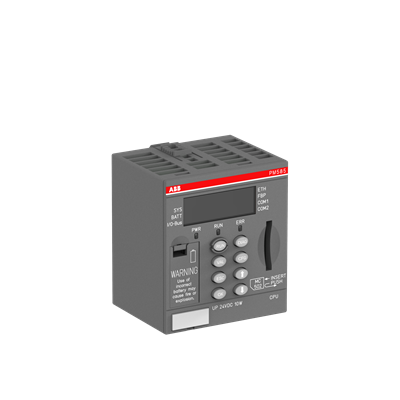

ABB PM585-ETH AC500 Processor module

Ordering

CN8:

85389091

Invoice Description:

Processor module. Memory 1MB. Interfaces: Ethernet, 2x RS232/485, FBP. Display (PM585-ETH)

Made To Order:

No

Minimum Order Quantity:

1 piece

Order Multiple:

1 piece

Selling Unit of Measure:

piece

Dimensions

Product Net Weight:

0.137 kg

Product Net Depth / Length:

62 mm

Product Net Height:

76 mm

Product Net Width:

67.5 mm

Gross Weight:

0.162 kg

Package Level 1 Depth / Length:

84 mm

Package Level 1 Height:

72 mm

Package Level 1 Width:

71 mm

Package Level 1 Units:

1 carton

Technical

Function:

Memory 1MB. Interfaces: Ethernet, 2x RS232/485, FBP. Display

Number of Hardware Interfaces:

Industrial Ethernet 1

Other 2

Parallel 0

RS-232 0

RS-422 0

RS-485 0

Serial TTY 0

USB 0

Wireless 0

Memory Size:

3584 kB

Memory Type User Data:

RAM

Controller Processing Time:

0.000004 ms

Number of Digital Configurable I/Os:

0

Degree of Protection:

IP20

Rated Voltage (Ur):

24 V DC

Supply Voltage:

20.4 … 28.8 V DC

Additional Information

Product Main Type:

PM585

Product Name:

Distributed Automation PLCs

Classifications

eClass:

27-24-22-07

ETIM 8:

EC000236 - PLC CPU-module

UNSPSC:

32151705

Environmental

SCIP:

6efd0b88-1104-43ff-a06a-953e7024227d Germany (DE)

WEEE B2C / B2B:

Business To Business

WEEE Category:

5. Small Equipment (No External Dimension More Than 50 cm)
