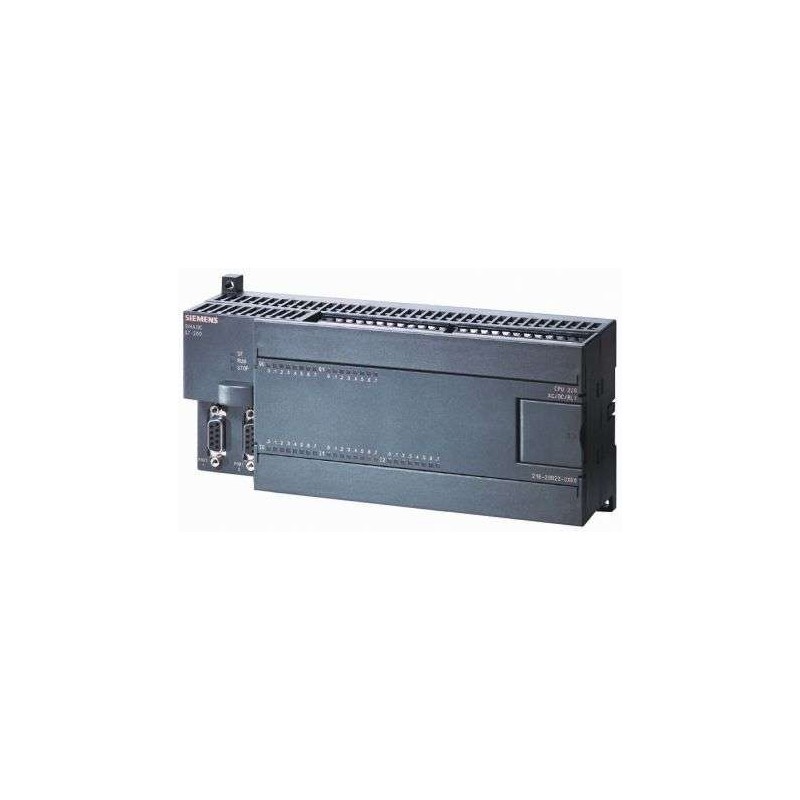

SIMATIC S7-200 CPU 226 with 6ES7216-2AD23-0XB8

Product Description: SIMATIC S7-200 CPU 226 with 6ES7216-2AD23-0XB8

Basic Information

• Product Name: SIMATIC S7-200 CPU 226

• Part Number: 6ES7216-2AD23-0XB8

• Brand: Siemens

Electrical Characteristics

• Power Supply: AC, with a voltage range from 100V to 240V

• Output Type: Transistor Outputs (Sinking/Sourcing)

• Output Ratings: Suitable for direct connection to various loads, up to 24Vdc

Input/Output Points

• Input Points: 24 DC Digital Inputs

• Output Points: 16 Transistor Digital Outputs

Memory Capacity

• Program Memory: 16KB to 24KB (specifics may vary by model)

• Data Memory: 10KB

Communication & Interfaces

• Communication Interfaces: 2 RS-485 communication ports supporting PPI and freely programmable SS

• Additional Features: Supports MPI (Multi-Point Interface) for network communication

Built-in Features

• Real-time clock for time-based applications

• Support for high-speed counters and pulse outputs for precision control

• Onboard diagnostics to facilitate troubleshooting

Other Features

• CPU Processing Power: High-speed processing ensures rapid execution of control logic

• Modular Expansion: Supports modular expansion up to a total of 256 I/O points (excluding S7-221), allowing for flexible system configuration

• Environmental Adaptability: Designed for industrial environments with extended temperature ranges and resilience to electromagnetic interference

Programming Software

• Uses MicroWin or compatible Siemens programming software for easy programming and configuration

• Enhanced features to optimize program development time and reduce debugging efforts

Application Scenarios

• Ideal for medium-complexity automation tasks requiring precise control and high-speed response

• Suitable for applications where transistor outputs are preferred for driving sensitive loads or for high-speed switching requirements

• Can be integrated seamlessly into larger automation systems or used as a standalone PLC solution
