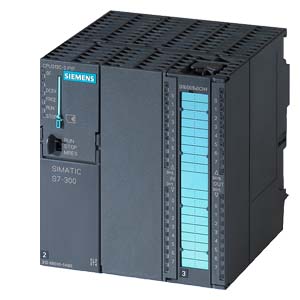

Specification Sheet for Siemens SIMATIC S7-300, CPU 313C-2 PTP COMPACT with MPI, 16 DI/16 DO, 3 Fast Counters (30 KHZ), Integrated RS485 Interface, and 24V DC Power Supply - Model 6ES7313-6BF03-0AB0
Basic Information
Product Model: 6ES7313-6BF03-0AB0
Product Series: SIMATIC S7-300
CPU Type: CPU 313C-2 PTP COMPACT
Application Areas: Chemical, Electronics, Electrical, Automation, and Process Control industries
Hardware Characteristics
Integrated Interfaces:
MPI interface for communication with programming devices and other PLCs
RS485 interface for serial communication with external devices
Digital Inputs/Outputs:
16 Digital Inputs (DI)
16 Digital Outputs (DO)
Fast Counters: 3 units, capable of up to 30 KHz, with retentivity
Power Supply: Integrated 24 V DC, allowing a range of 19.2 V to 28.8 V
Power Protection: External protection recommended (for power supply cables)
Memory Configuration
Working Memory: 64 KByte
Load Memory: Micro Memory Card required (size not specified, but typically supports larger capacities than MMC for previous models)
Retentive Memory: For retentive data blocks, details may vary depending on the size of the Micro Memory Card used
Programming Environment
Supported Software: STEP 7 V5.5 + SP1 or higher, or compatible versions with necessary HSPs (Hardware Support Packages)
Processing Capabilities
Processor performance optimized for fast scanning and processing times
Detailed operation times (bit, word, fixed-point, floating-point arithmetic) may vary slightly due to the specific CPU model and are typically similar to the CPU 312 but with potential enhancements for specific tasks
Additional Features
Program Block Quantities:
Maximum number of Data Blocks (DBs): Depends on available memory capacity, but generally supports a large number
Maximum number of Function Blocks (FBs) and Functions (FCs): Depends on available memory, with similar capacity to CPU 312
Types and quantities of Organization Blocks (OBs): Including standard OBs such as OB1 (main program), OB10 (warm restart), OB35 (timed interrupt), and many others, depending on application requirements
Counters and Timers:
S7 Counters: Includes the 3 fast counters (30 KHz) mentioned, with additional standard counters available depending on memory capacity
S7 Timers: Unlimited (limited only by RAM capacity), with retentivity
