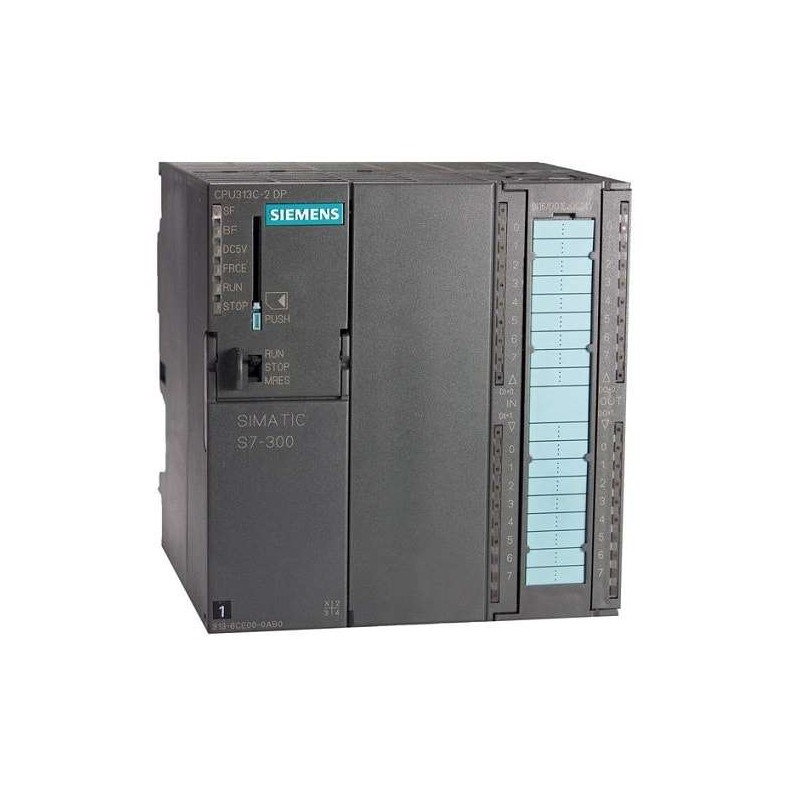

Specification Sheet for Siemens SIMATIC S7-300, CPU 313C-2DP COMPACT CPU
Basic Information
Product Model: 6ES7313-6CE03-0AB0
Product Series: SIMATIC S7-300
CPU Type: CPU 313C-2DP COMPACT
Application Areas: Chemical, Electronics, Electrical, and other industrial automation fields requiring high-speed processing and communication capabilities.
Hardware Characteristics
Integrated Interfaces:
MPI interface for basic communication
Integrated DP (PROFIBUS DP) interface for high-speed communication with distributed I/O and other PROFIBUS devices
Digital Inputs/Outputs:
16 Digital Inputs (DI)
16 Digital Outputs (DO)
High-Speed Counters: 3 Fast Counters capable of operating at 30 KHz
Power Supply: Integrated 24 V DC, allowing a range of 19.2 V to 28.8 V
Power Protection: External protection recommended (for power supply cables)
Memory Configuration
Working Memory: 64 KByte
Load Memory: Micro Memory Card required (size not specified, but typically expandable up to the limits of the card)
Retentive Memory: Available for retaining data blocks across power cycles (size may vary depending on memory card capacity)
Programming Environment
Supported Software: STEP 7 V5.5 + SP1 or higher for programming and configuration
Processing Capabilities
High-speed processing suitable for applications requiring fast response times
Detailed operation times (e.g., bit, word, and arithmetic operations) may vary but are generally optimized for real-time industrial control
Additional Features
Program Block Quantities:
Maximum number of Data Blocks (DBs) and limits will depend on available memory
Maximum number of Function Blocks (FBs) and Functions (FCs) also dependent on memory, but optimized for modular programming
Types and quantities of Organization Blocks (OBs) including OB1 (main program), OB10 (startup), OB20-21 (time-controlled interrupts), OB32-35 (cyclic interrupts), OB40 (hardware interrupts), OB100 (warm restart), OB80-87 (error handling), and others as needed
Counters and Timers:
S7 Counters: 3 fast counters included, with additional counters available depending on memory and configuration
S7 Timers: Multiple timers available, with retentivity for maintaining timing across power cycles
Integrated 24V DC Power Supply: Provides power for CPU and connected peripherals, simplifying wiring and installation
