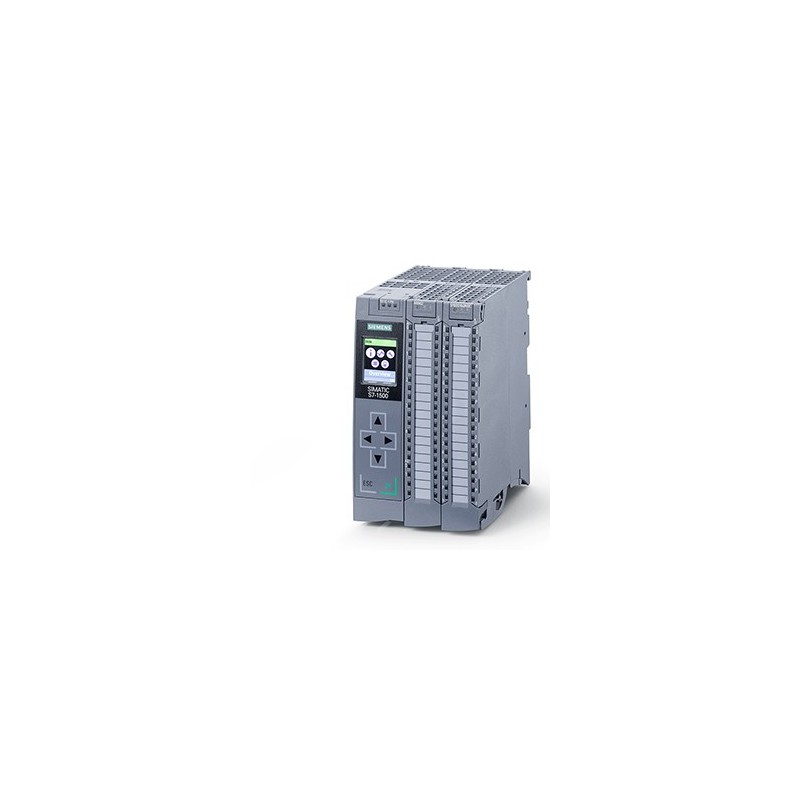

Siemens SIMATIC S7-1500 Compact CPU CPU 1511C-1 PN, 6ES7511-1CK00-0AB0

Specification Sheet for Siemens SIMATIC S7-1500, CPU 1511C-1 PN, 6ES7511-1CK00-0AB0

Basic Information

• Product Model: 6ES7511-1CK00-0AB0

• Product Series: SIMATIC S7-1500

• CPU Type: CPU 1511C-1 PN, Compact CPU

• Application Areas: Ideal for complex industrial automation projects, including automotive, machinery, and process industries, requiring high performance and scalability

Hardware Characteristics

• Integrated I/O:

• 16 Digital Inputs (DI) 24 V DC, supporting direct connection of various sensors and switches

• 16 Digital Outputs (DO) 24 V DC, capable of driving various loads

• 5 Analog Inputs (AI) 0-10 V DC or 4-20 mA, suitable for connecting analog sensors and measuring devices

• 2 Analog Outputs (AO) 0-10 V DC or 4-20 mA, for controlling analog devices

• High-Speed Counters: 6, ideal for precise counting applications

• PTO/PWM/Frequency Output Counters: 4, supporting pulse train output (PTO), pulse width modulation (PWM), and frequency measurement

• 1st Interface: PROFINET IRT with 2-port switch, offering high-speed communication with 60 ns bit performance and integrated push-in front connector for easy wiring

Power Supply

• Power requirements typically specified in the official documentation, tailored for the S7-1500 series. Consult the manual for exact voltage and current ratings.

Memory Configuration

• Work Memory:

• 175 KB for program, ample space for complex automation tasks and algorithms

• 1 MB for data, enabling large-scale data storage and manipulation

Programming Environment

• Supported Software: TIA Portal (Totally Integrated Automation Portal) V13 or higher, offering advanced tools for efficient program development, simulation, and troubleshooting

• Programming Languages: Supports Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), and Instruction List (IL), allowing for flexible programming strategies tailored to the application needs

Processing Capabilities

• Designed for high-speed and reliable execution of complex control logic, arithmetic operations, and communication tasks

• Optimized for demanding industrial automation applications requiring real-time performance and scalability

Additional Features

• Enhanced Diagnostics: Comprehensive onboard diagnostics facilitate quick troubleshooting and maintenance

• Compact Design: Space-saving form factor for easy integration into tight spaces and modular automation systems

• High-Speed Communication: PROFINET IRT interface ensures seamless integration into modern industrial networks and supports real-time communication with other devices

• Mixed I/O Type: Combination of digital and analog I/O, as well as specialized counters and outputs, provides versatility for a wide range of control tasks

Notes

• The above specification sheet is based on publicly available information and may be subject to change due to product updates.

• It is recommended to consult the latest official documentation or contact Siemens technical support for the most accurate information before purchase or use.

• The CPU 1511C-1 PN is part of the SIMATIC S7-1500 family, representing a powerful and scalable solution for demanding industrial automation applications.
