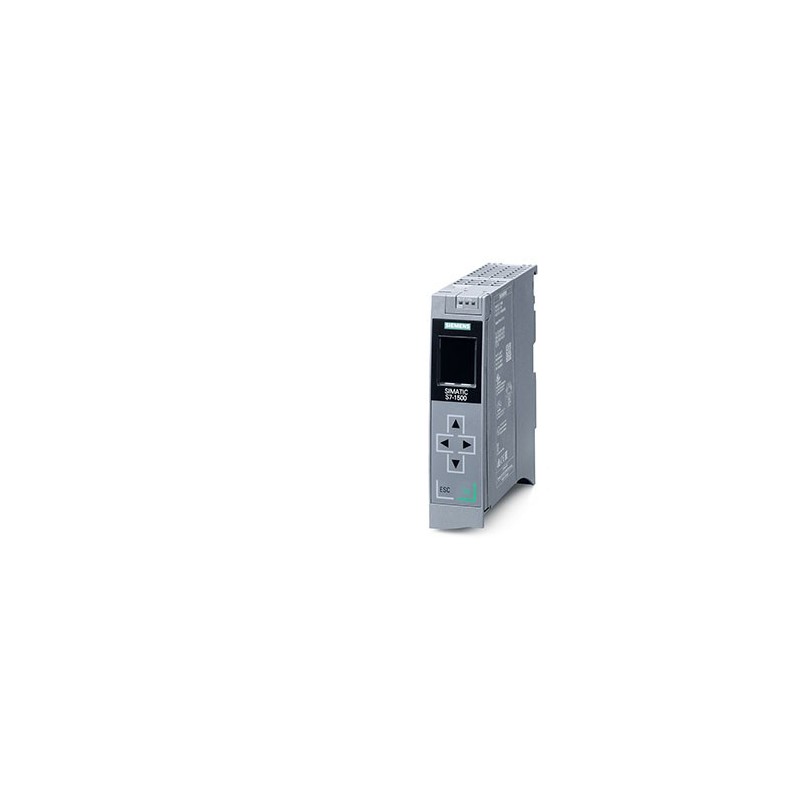

Siemens SIMATIC S7-1500F, CPU 1511F-1 PN, 6ES7511-1FK01-0AB0

Specification Sheet for Siemens SIMATIC S7-1500F, CPU 1511F-1 PN, 6ES7511-1FK01-0AB0

Basic Information

• Product Model: 6ES7511-1FK01-0AB0

• Product Series: SIMATIC S7-1500F

• CPU Type: CPU 1511F-1 PN, Central Processing Unit with Fault-Tolerant Technology

• Application Areas: Designed for high-availability and safety-critical industrial automation applications, including process industries, manufacturing, and infrastructure.

Hardware Characteristics

• Work Memory:

• 225 KB for program, providing ample space for complex and sophisticated automation programs.

• 1 MB for data, ensuring sufficient capacity for storing large amounts of operational and diagnostic data.

• Interfaces:

• 1st Interface: PROFINET IRT with 2-port switch, supporting high-speed and deterministic communication with a 60 ns bit performance, ideal for real-time applications.

• Additional interfaces may be available through expansion modules, depending on the system configuration.

• Power Supply: Typically requires an external power supply unit, compatible with the specified voltage range and power requirements of the CPU.

• Fault-Tolerant Technology: Incorporates features to ensure continuous operation even in the event of hardware failures, enhancing system reliability and availability.

Memory Configuration

• As mentioned above, the CPU 1511F-1 PN offers 225 KB of program memory and 1 MB of data memory, allowing for complex automation tasks and extensive data handling capabilities.

Programming Environment

• Supported Software: TIA Portal (Totally Integrated Automation Portal) V13 or higher, providing a comprehensive and user-friendly platform for programming, configuration, and diagnostics.

• Programming Languages: Supports Ladder Diagram (LD), Function Block Diagram (FBD), Structured Text (ST), and Instruction List (IL), enabling flexible and efficient programming tailored to individual project requirements.

Processing Capabilities

• Optimized for high-performance execution of control logic, arithmetic operations, and communication tasks, suitable for demanding and safety-critical automation applications.

• Supports PROFINET IRT for deterministic communication, ensuring precise timing and synchronization across the network.

Additional Features

• Fault-Tolerant Design: Incorporates redundant components and mechanisms to minimize downtime and maintain system operation in the face of hardware failures.

• High-Speed Communication: With PROFINET IRT and a 2-port switch, the CPU 1511F-1 PN facilitates fast and reliable data exchange within the automation network.

• SIMATIC Memory Card Required: For program storage, backup, and recovery, a compatible SIMATIC memory card is necessary.

• Enhanced Diagnostics: Comprehensive diagnostic capabilities for efficient troubleshooting and maintenance, reducing downtime and improving system availability.

• Modular Design: Allows for flexible expansion and customization through the addition of various expansion modules, meeting specific project requirements.

Notes

• The above specification sheet is based on publicly available information and may be subject to change due to product updates.

• It is recommended to consult the latest official documentation or contact Siemens technical support for the most accurate information before purchase or use.

• The CPU 1511F-1 PN, as part of the SIMATIC S7-1500F family, offers a powerful and fault-tolerant solution for high-availability industrial automation applications.
