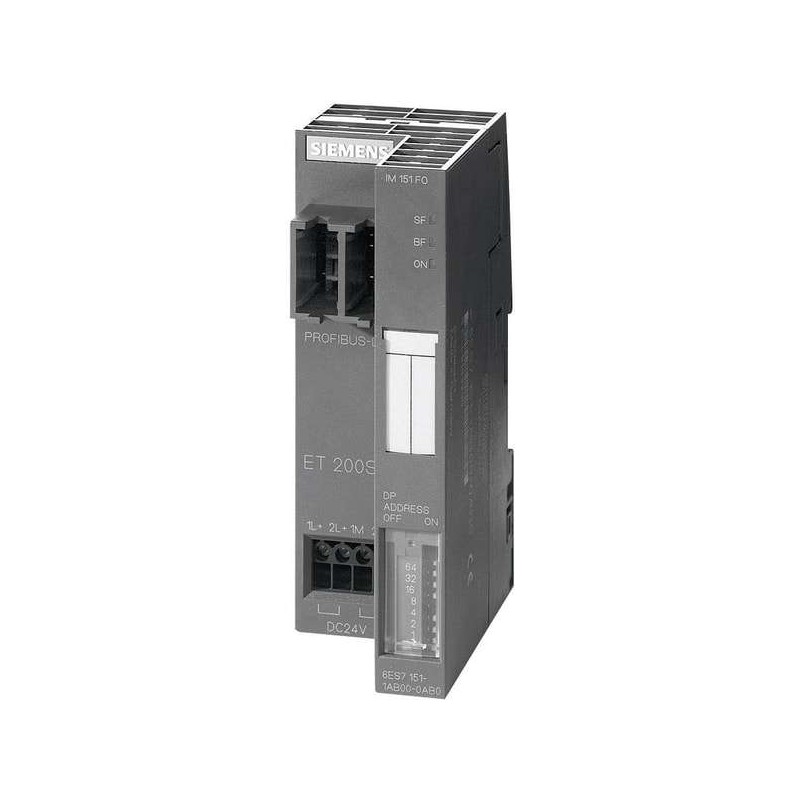

6ES7151-1AA06-0AB0 Siemens SIMATIC DP, Interface module IM 151-1 Standard for ET 200S; incl. termination module

Specification Sheet for 6ES7151-1AA06-0AB0 Siemens SIMATIC DP, Interface Module IM 151-1 Standard for ET 200S

Product Overview

• Brand: Siemens

• Model Number: 6ES7151-1AA06-0AB0

• Series: SIMATIC DP

• Type: Interface Module IM 151-1 Standard for ET 200S

Functionality & Applications

• Function: Acts as the central communication and configuration interface between the ET 200S distributed I/O system and the PROFIBUS DP network.

• Applications: Used in industrial automation systems where PROFIBUS DP communication is required for connecting ET 200S I/O modules to a central controller or PLC.

Technical Specifications

• Data Volume: 244 bytes each for inputs and outputs, allowing efficient data exchange between the ET 200S system and the PROFIBUS DP network.

• Maximum I/O Modules: Supports up to 63 I/O modules in the ET 200S system, providing scalability and flexibility.

• PROFIBUS DP Compatibility: Supports PROFIBUS DP protocols V0 and V1, ensuring compatibility with a wide range of Siemens and third-party PROFIBUS devices.

• Bus Connection:

• Connector Type: 9-pin D-sub

• Cable Length: Up to 2 meters (depending on cable type, topology, and signal quality)

• Termination: Includes a termination module for reliable signal termination at the end of the PROFIBUS DP segment.

Features

• Standard Interface: Provides a standardized interface for easy integration into PROFIBUS DP networks.

• High-Speed Communication: Enables fast and reliable data transfer between the ET 200S system and the PROFIBUS DP network.

• Scalable: Supports up to 63 I/O modules, allowing for the expansion of the ET 200S system as needed.

• Termination Module: Included termination module simplifies installation and ensures optimal signal integrity.

Programming & Configuration

• Configuration Software: Typically configured using Siemens' STEP 7 software, compatible version required.

• Addressing & Configuration: Module addressing and configuration are done via STEP 7 software, enabling seamless integration into the automation system.

Miscellaneous

• Customization: Not customizable (standard product)

• Warranty: Covered by Siemens' standard warranty policy (check with Siemens or your authorized reseller for exact details)

Note: The specifications provided are general in nature and may vary slightly depending on the specific product version, production batch, and application environment. For accurate and up-to-date information, please refer to the official Siemens product manual, technical documentation, or contact Siemens technical support.
