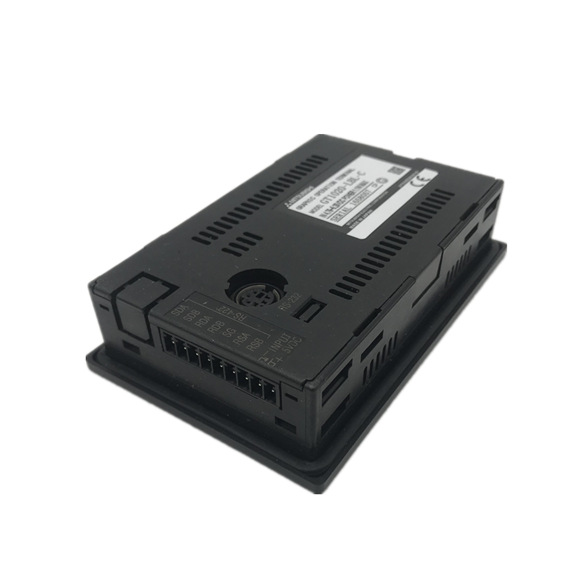

| Item | Specifications |
| GT1020-LBD/LWD | GT1020-LBD2/LWD2 | GT1020-LBL/LWL |
| Display section | STN monochrome (white/black) liquid crystal |
| Screen size | 3.7″ |
| Resolution | 160 64 dots (Horizontal format) |
| Display size | W86.4(3.4) H34.5(1.35) [mm](inch) (Horizontal format) |
| Display character | 16-dot standard font: 20 characters 4 lines (Horizontal format) |
| Display color | Monochrome (white/black) |
| Display angle | Left/Right: 30 degrees, Top: 20 degrees, Bottom: 30 degrees (Horizontal format) |
| Contrast adjustment | 16-level adjustment |
| Intensity of LCD only | 200 [cd/m2] (in green) |
| Life | Approx. 50,000h. (Time for display intensity to become 1/5 at operating ambient temperature of 25) |
| LED with 3 available colors (green, red, orange) (no replacement required), |
| Backlight | Backlight status (colors, ON/BLINK/OFF) control, Adjustable screensaver activation time Setting the system information*2 enables PLC to control the backlight status. |
| Touch panel | Maximum 50 keys/screen (Analog resistive film touch panel) |
| Number of touch keys |
| Key size | Minimum 2 2 dots (per key) |
| Simultaneous pressing of two (or more) areas (2-point press) | Not supported |
| (Simultaneous pressing of two or more areas on the screen may activate the switch between those areas.) |
| Life | 1 million times or more (operating force 0.98N max.) |
| Memory | Flash memory (Internal), for storing project data (512 Kbytes or less), OS, Alarm history, Recipe data and time action setting value |
| C drive*3 |
| life (Number of write times) | 100,000 times |
| • RS-422 1ch Transmission speed: |
|
|
| 115,200/57,600/38,400/ |
|
|
| 19,200/9,600/4,800bps |
|
|
| Connector shape: Connector terminal block 9 pins |
|
|
| Application: |
|
|
| PLC communication (Hardware version A to D) |
|
|
| • RS-422/485 1ch |
|
|
| Transmission speed: 115,200/57,600/38,400/ | RS-232 1ch | RS-422 1ch |
| 19,200/9,600/4,800bps | Transmission speed: 115,200/57,600/38,400/ | Transmission speed: 115,200/57,600/38,400/ |
| Connector shape: Connector terminal block 9 pins | 19,200/9,600/4,800bps | 19,200/9,600/4,800bps |
| Application: | Connector shape: Connector terminal block 9 pins | Connector shape: Connector terminal block 9 pins |
| PLC communication Terminating resistor*4: | Application: | Application: |
| Built-in interface | Open/110 /330 (Switched by terminating resistor selector switch) (At | PLC communication | PLC communication |
| factory shipment: 330 ) (Hardware version E or later) |
|
|
| PLC communication |
|
|
|

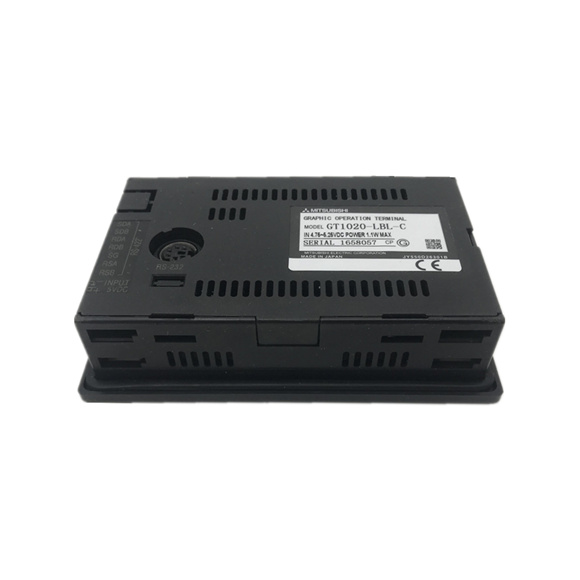

| RS-232 1ch |
| Transmission speed : 115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape : MINI DIN 6 pins (Female) |
| PC communication | Application : PC communication (Project data upload/download, OS installation, transparent function) |
| Buzzer output (a buzzer that sounds when touch keys are pressed) | Single tone (LONG/SHORT/OFF adjustable) |
| Environmental protective structure*5 | Equivalent to IP67 (JEM1030) (front section) (Horizontal format) |
| External dimensions | W113(4.44) H74(2.91) D27(1.06) [mm](inch) (Horizontal format) |
| Panel cutting dimensions | W105(4.13) H66(2.59) [mm](inch) (Horizontal format) |
