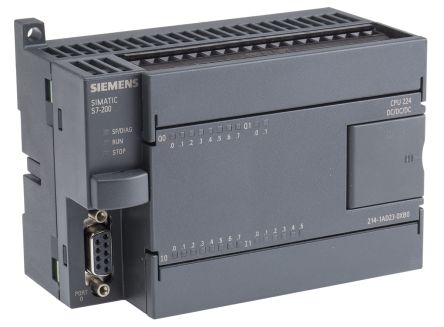

SIMATIC S7-200 PLC CPU 224 DC DC DC | 6ES7214-1AD23-0XB0

The SIMATIC S7-200 PLC CPU 224 DC DC DC with the product code 6ES7214-1AD23-0XB0 offers a versatile set of specifications designed for a wide range of automation control applications.

Basic Information

• Product Name: SIMATIC S7-200 CPU 224 DC DC DC

• Part Number: 6ES7214-1AD23-0XB0

• Brand: Siemens

Electrical Characteristics

• Power Supply: DC, with specific voltage requirements depending on the DC source

• Input Type: DC Digital Inputs

• Output Type: DC Digital Outputs (Transistor or Triac, depending on model specifics)

• Output Ratings: For transistor outputs, up to 24Vdc (typical); for Triac outputs, suitable for AC loads

Input/Output Points

• Input Points: 14 DC Digital Inputs

• Output Points: 10 DC Digital Outputs

Memory Capacity

• Program Memory: 8KB (expandable depending on model and configuration)

• Data Memory: 6KB

Communication & Interfaces

• Communication Interfaces: 1 RS-485 communication port supporting PPI (Point-to-Point Interface) and freely programmable SS (Serial Slave) protocols

• Additional Interfaces: May include additional communication options or expansion capabilities depending on model

Built-in Features

• Real-time Clock: Provides time-based control and monitoring capabilities

• High-speed Counters: Supports counting of high-speed events (specific number and speed may vary by model)

• Pulse Outputs: Depending on model, may support pulse outputs for precise timing and control

Other Features

• CPU Processing Power: Efficiently processes instructions for fast response times

• Modular Design: Supports modular expansion for increased I/O capabilities (though limited compared to CPU 226)

• Environmental Adaptability: Designed for reliable operation in various industrial environments

Programming Software

• Software: Uses MicroWin programming software, which provides an intuitive interface and powerful tools for program development

Application Scenarios

• Small-scale Automation Tasks: Ideal for cost-effective and efficient automation of simple processes

• Compact Solutions: Its compact design makes it suitable for space-constrained applications

• Standalone or Integrated Use: Can be used as a standalone PLC or integrated into larger automation systems

Notes

• The specific output type (Transistor or Triac) and voltage ratings for the DC outputs may vary depending on the exact model variant.

• Always refer to the official Siemens documentation for the most accurate and up-to-date technical specifications.
