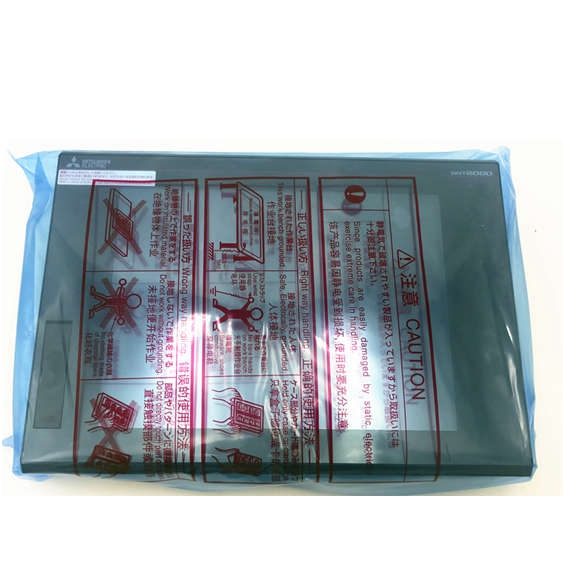

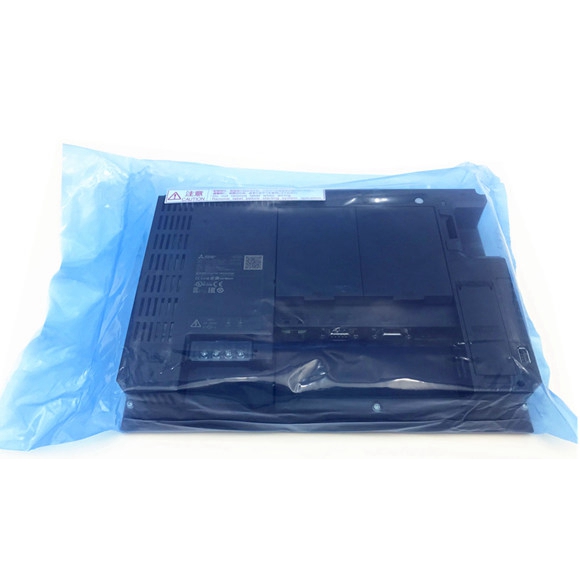

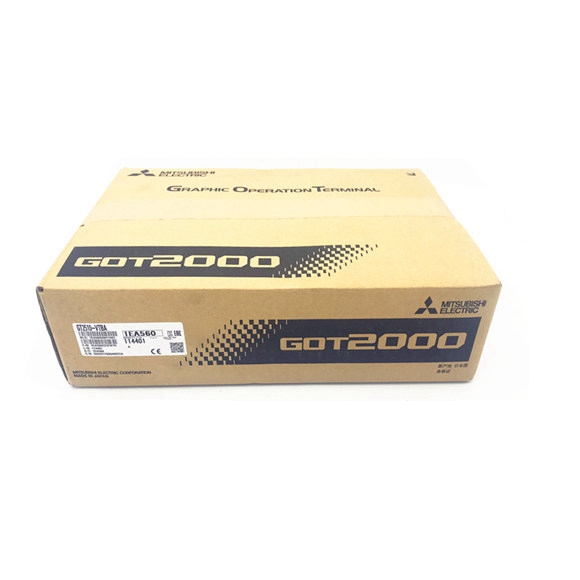

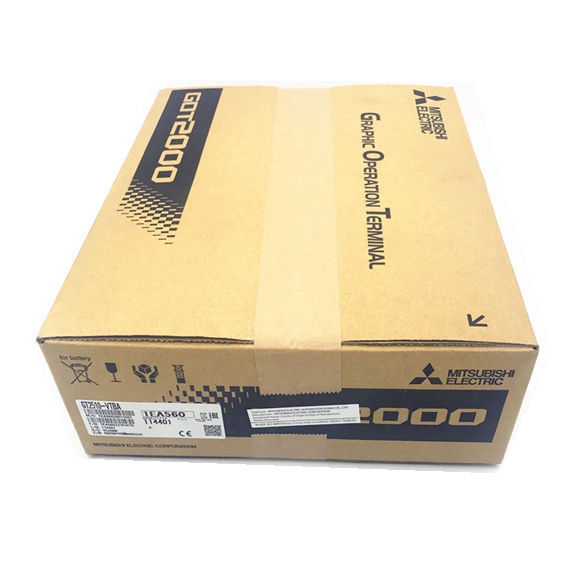

Mitsubishi Touch screen HMI | GT2512-STBA GT2512-STBD GT2512-STNA GT2512-STND | GT2510-VTBA GT2510-VTBD GT2510-VTWA GT2510-WTWD | GT2510F-VTNA GT2510F-VTND | GT2510-WXTBD GT2510-WXTSD | GT2508-VTBA GT2508-VTBD | GT2508-VTWA GT2508-VTWD | GT2508F-VTNA GT2508F-VTND | GT2507-WTBD GT2507-WTSD GT2507T-WTSD | GT2505-VTBD GT2505HS-VTBD | GT2506HS-VTBD | |
| Type | TFT Color LCD | ||||||||||
| Screen Size | 12.1" | 10.4" | 10.1'' | 8.4" | 7" | 5.7" | 6.5" | ||||
| Resolution (Dots) | 800*600 SVGA | 800*600 SVGA | 1280*800 | 640*480 VGA | 800*480 | 640*480 VGA | |||||
| Display Size (W x H) mm | 246*184.5 | 211.2*158.4 | 216.96*135.6 | 170.9*128.2 | 152.4*91.4 | 115.2*86.4 | 132.5*99.4 | ||||
| Number of Characters | 16 dot: 64 x 48 12 dot :85 x 64 | 40 x30 53x40 | 16 dot: 80 x 50 12 dot :106 x 66 | 16-dot standard font: 50 chars. x 30 lines (2-byte) 12-dot standard font: 53 chars. X 40 lines(2-byte) | 16-dot 50 x 30 12-dot 66 X 40 | ||||||
| Display Colors | 65536 COLORS | ||||||||||
| Intensity Adjustment | 32-Level adjustment | ||||||||||
Backlight Type | LED (not replaceable | ||||||||||
| Life | Approx. 60000 hours or more (Time for display intensity reaches 50% at ambient temperature of 25°C) (*4) | Approx. 60000 | |||||||||
| Touch Panel (*3) Type | Aanlog Resistive Film | ||||||||||
| Key Size | Minimum 2*2 dots (per key)(*7) | ||||||||||
| Simultaneous Press | Maximum 2 points | ||||||||||
| Life | 1 Million times or more (operating force 0.98N or less) | ||||||||||
| Panel Colors | Black | B/w(WD) | B/S | Black | White | Black | B/S | ||||
Human Sensor Detection Distance (m) | 1m | ||||||||||
| Detection Temperature | Temperature difference between human body and ambient air: 4 degree C or higher | ||||||||||
Memory User Menmory Capacity | ROM: 32MB RAM:80MB | 32MB+128MB | 32MB+80/128MB | 32MB+80MB | |||||||
| Life(No. of Writings) | 100000 times | ||||||||||
| Internal Clock Accuracy | ±90 sec/month (ambient temperature 25°C) | ||||||||||
| Battery Type | GT11-50BAT lithium battery | ||||||||||
| Life | Approx. 5 years (ambient temperature 25°C) | ||||||||||
| Built-in Interface Rs-232 | 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (male) 2605HS-VTBD42pin, GT2505HS-VTBD32pin(male） | ||||||||||
| RS-422/485 | 1ch Transmission speed: 115200/57600/38400/19200/9600/4800bps Connector shape: D-sub 9-pin (female) 2605HS-VTBD42pin,2505HS-VTBD32pin(male） | ||||||||||
| Ethernet | 1ch Data transfer method: 10BASE-T/100BASE-TX Connector shape: RJ-45 (modular jack) | ||||||||||
| USB (Host) | 2 B-f/r,1 N-r | 2 B-f/r,1 W-r | 1-r | 2-f/r | 2 -f/r | 1-r | 1-r | 2 -f/r, 7T-0 | 1-r | ||
| Maximum transfer speed: High-Speed 480Mbps Connector shape: USB-A | |||||||||||
| USB(Driver) | 1 B-f,N-r
| 1 B-f,W-r | 1-r | 1-f | 1 -f | 1-r | 1-r | 1 -f 7T-r | 1-r | ||
| Maximum transfer speed: High-Speed 480Mbps Connector shape: USB Mini-B | |||||||||||
| SD Card | 1ch SDHC compliant (maximum 32GB) | ||||||||||
| Extension Interface (*6) | For communication unit/option unit mounting | Grip switch：IDE HE3B-M2PB | |||||||||
| Auxiliary Extension I/F | For option unit mounting | Stop switch：IDE XA1E-BV03R | |||||||||
| Side Interface | For LAN communication unit mounting | Keylock Switch：IDEC AS6M-2KT1PB | |||||||||
| Sound Output Interface | f3.5 | f3.5 7T | |||||||||
| Buzzer Output | Single tone (tone, tone length adjustable) | ||||||||||
| Power LED | Emission color: 2 colors (blue, orange) | ||||||||||
| Protective Construction | Front: IP67F (*6,*9 or *7,*9) In control panel: IP2X | IP65 *6,*8 | |||||||||
| External Dimensions(W*H*D)mm | 316*246*52(B) 311*237*54(N) | 303*218*52 | 298*209*52 | 252*194*48 | 241*194*51 | 236*185*54 | 214*158*55 | 164*139*53.5 145*185*79.3 | 201*230*97 | ||
| Panel Cutout(W* H) | 302*228(B) 269*214(N) | 289*200 | 234*187 | 243.5*185.5 | 227*176 | 194*158 | 197*141 | 153*121 | |||
Weight(KG) Excludes Mounting Brackets) | 2.4 | 2.1 | 1.2 | 1.5 | 0.75 | 1.2 | 0.6/7.9 | 1.2 | |||
Application Software Package | 1.112S or 1.150G | 1.112S or 1.150G | 1.175G | 1.112S | 1.175H | 1.175H | 1.180N/11.95D | 1.170C | |||
